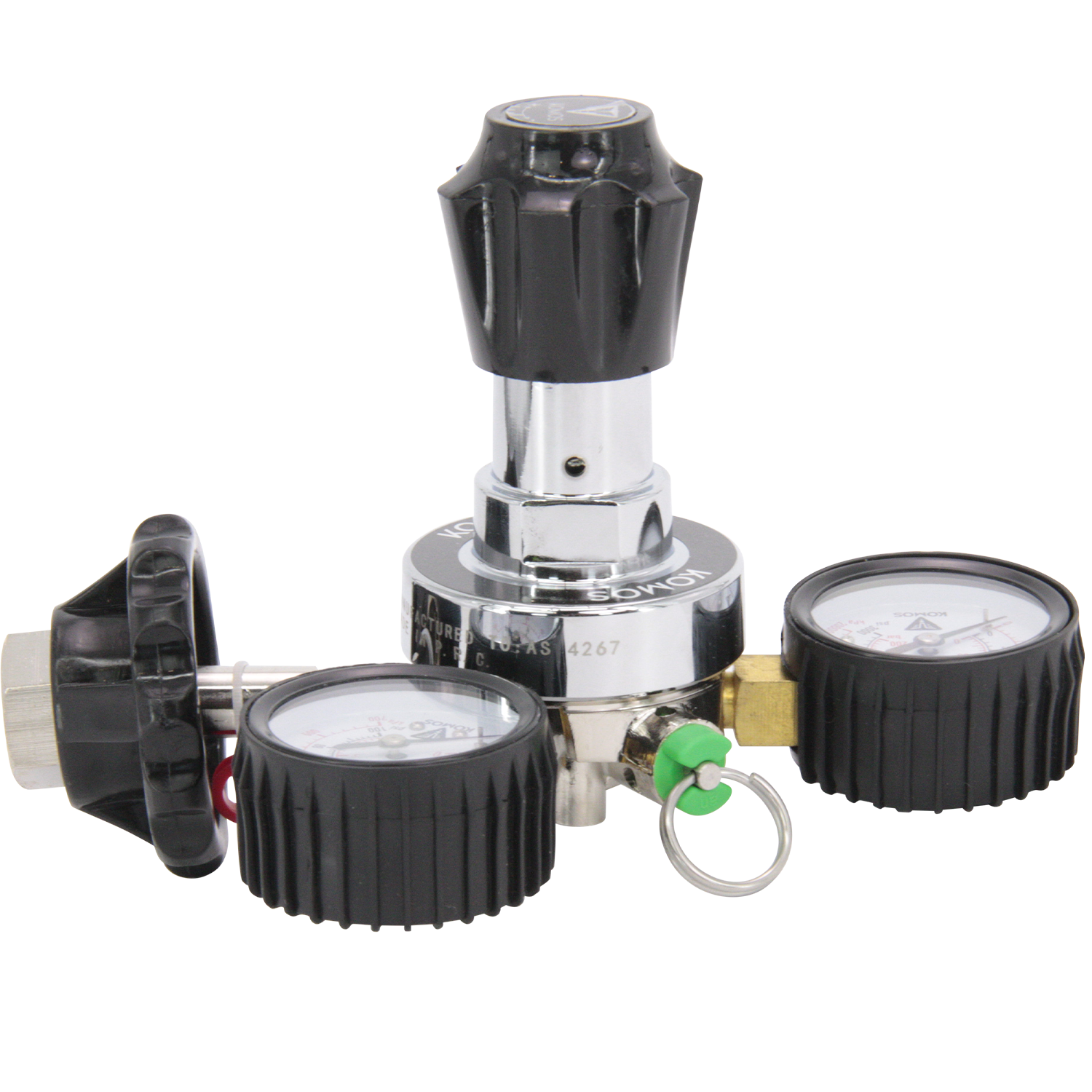

- The most high-quality KOMOS regulator, featuring an integrated nut-hand-wheel that allows for effortless, one-handed tightening to your CO2 cylinder
- Internal components are accessible from the backplate for easy cleaning and servicing

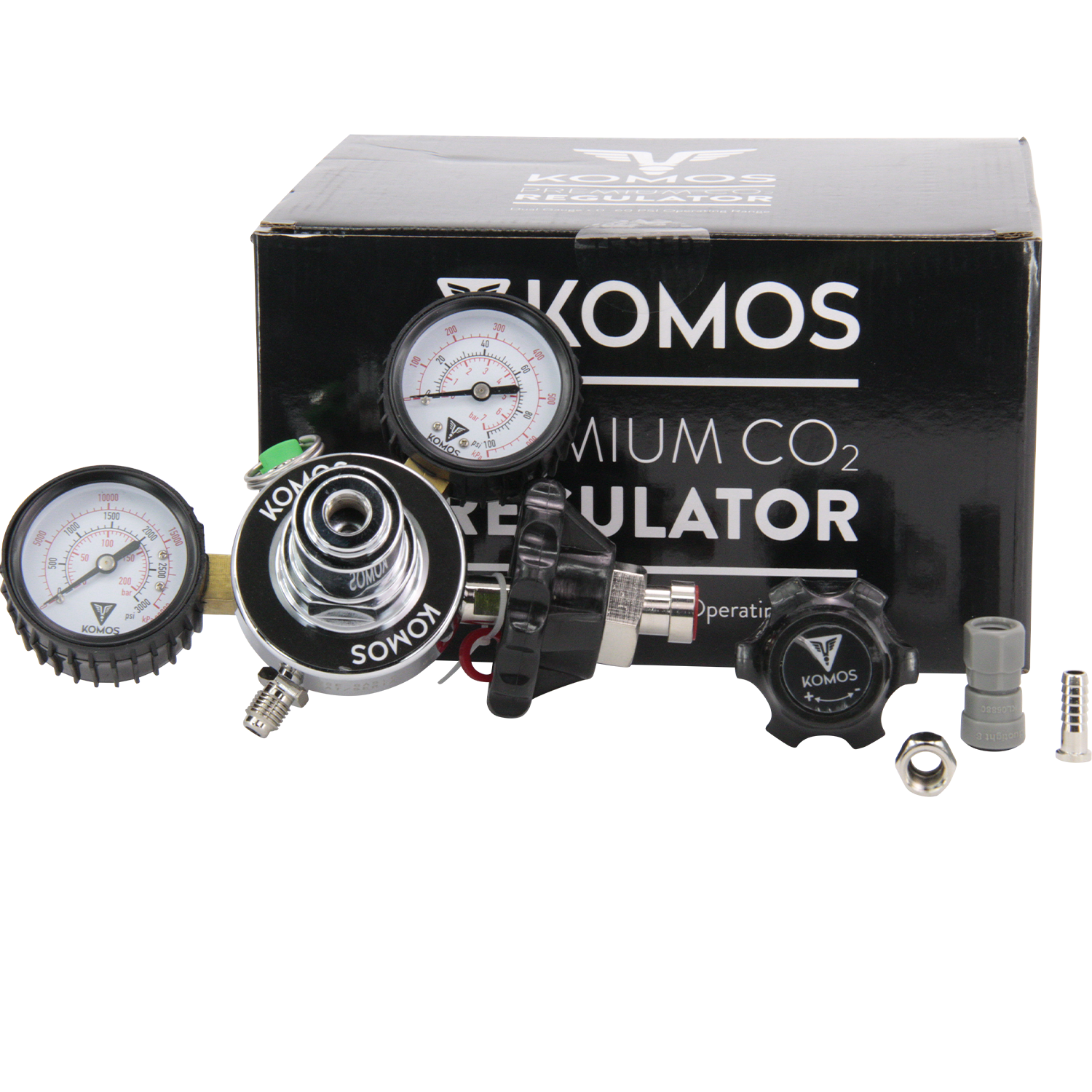

- Includes a Duotight adapter for EVABarrier tubing and a 1/4" flare fitting with barb, allowing for quick and adaptable gas line setups
- The PRV is rated to 65 psi and can be swapped out with 17-psi, 35-psi, or 100-psi rated PRVs if desired

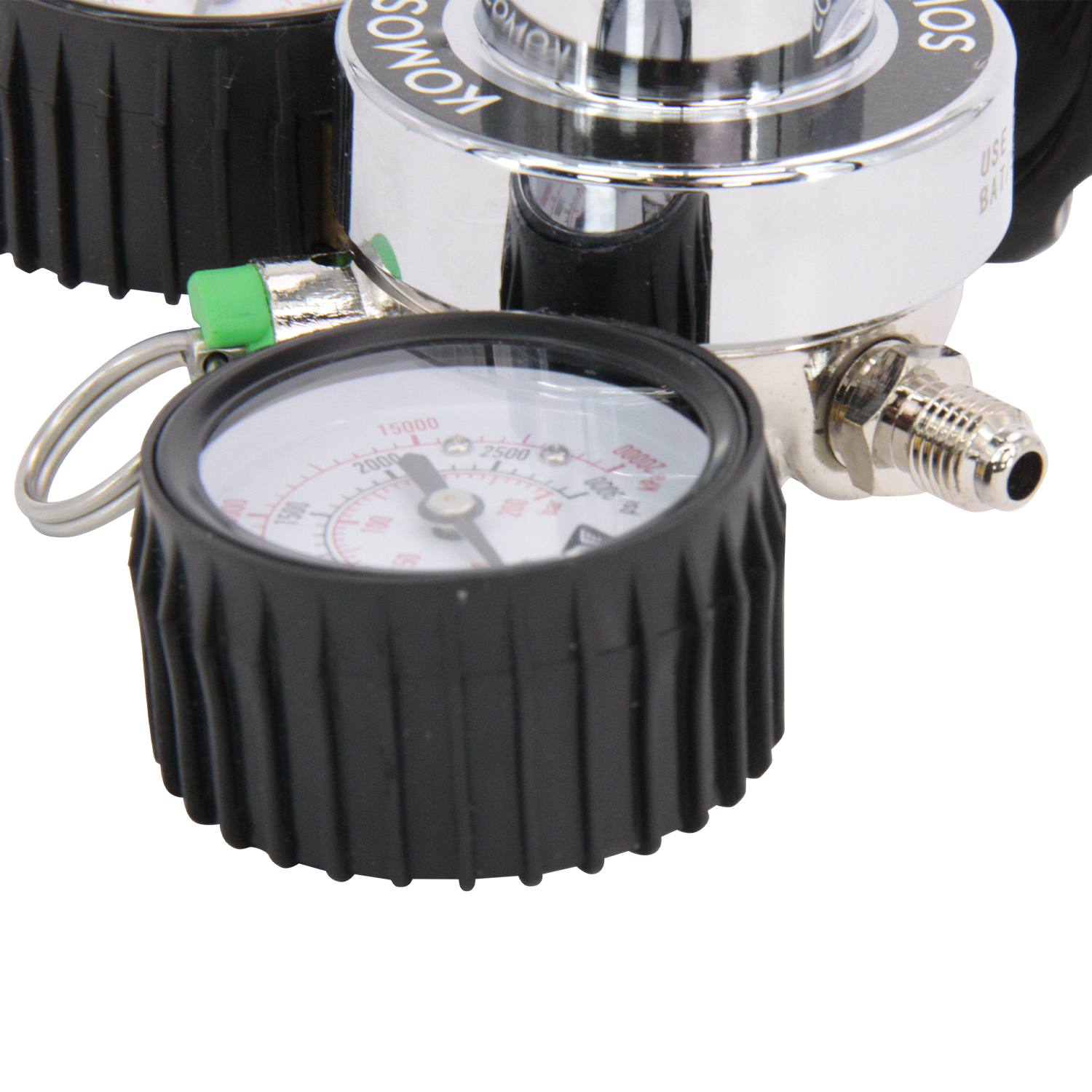

- Rubber gauge protectors safeguard gauges from potential damage
- Compatible with standard US CO2 tanks

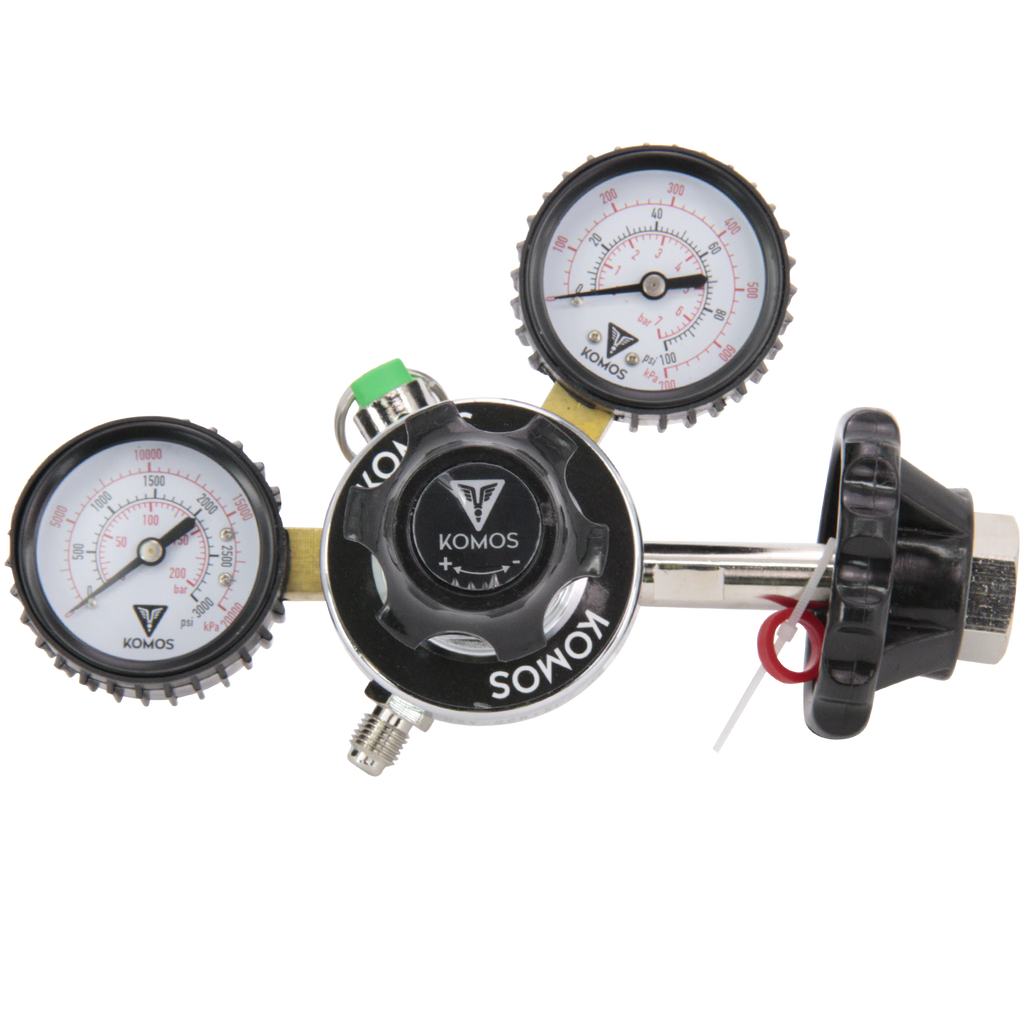

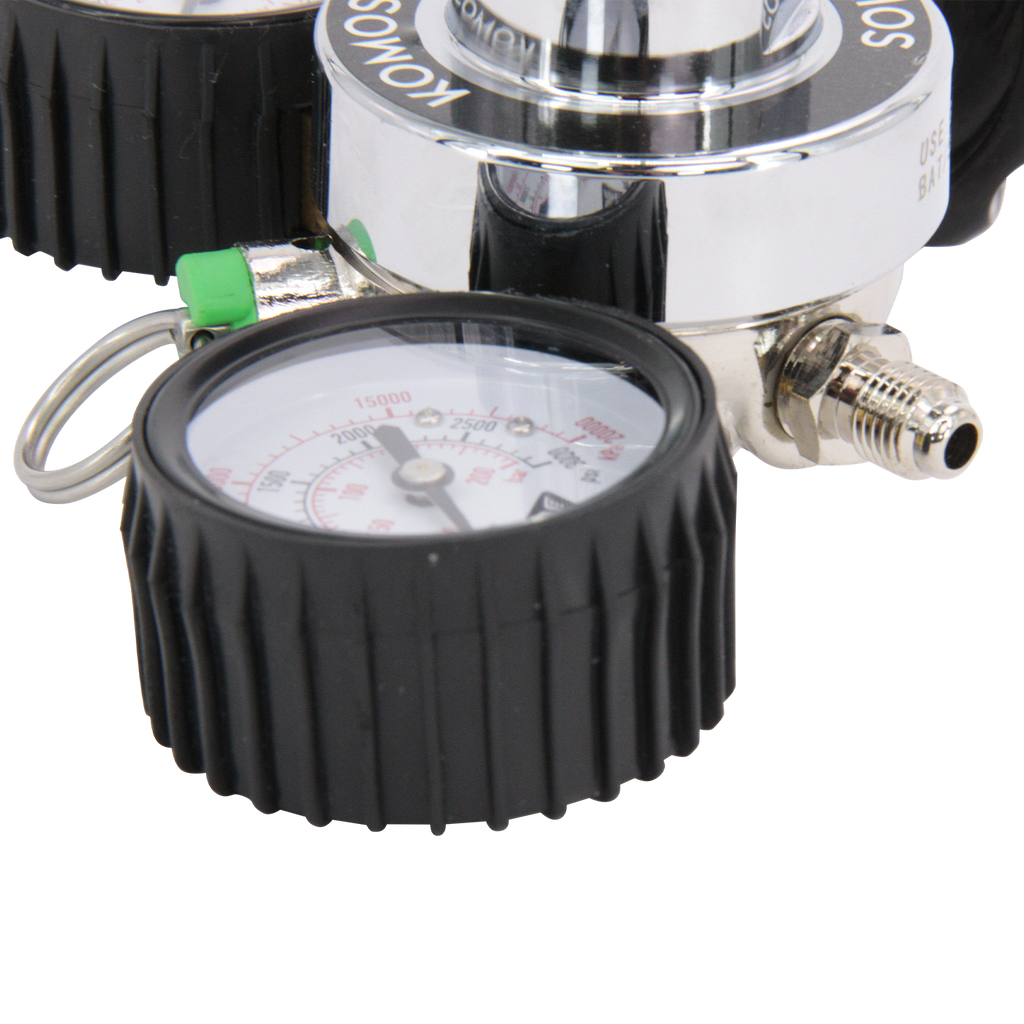

The robust body and precision diaphragm provide high flow rates, and the pressure can be easily and precisely adjusted with the hand dial. Extra thick stainless gauges come with rubber bumpers for added protection. The dial faces are triple-scaled to read in psi, bar and kPa.
The PRV is rated to 65 psi (4.5 bar) for added safety while in use. Comes with male flare thread gas-out with included 1/4" barb and nut. Easily swap out the barb to a different size if desired. On the back of the regulator body are three M6 screw holes for mounting (screws not included).
Each KOMOS regulator includes a Duotight Adapter, allowing for quick connection of EVABarrier draft tubing for a solid, yet easy to change, way of connecting gas line. Add Duotight Tees to easily split the line to multiple kegs.
Features:

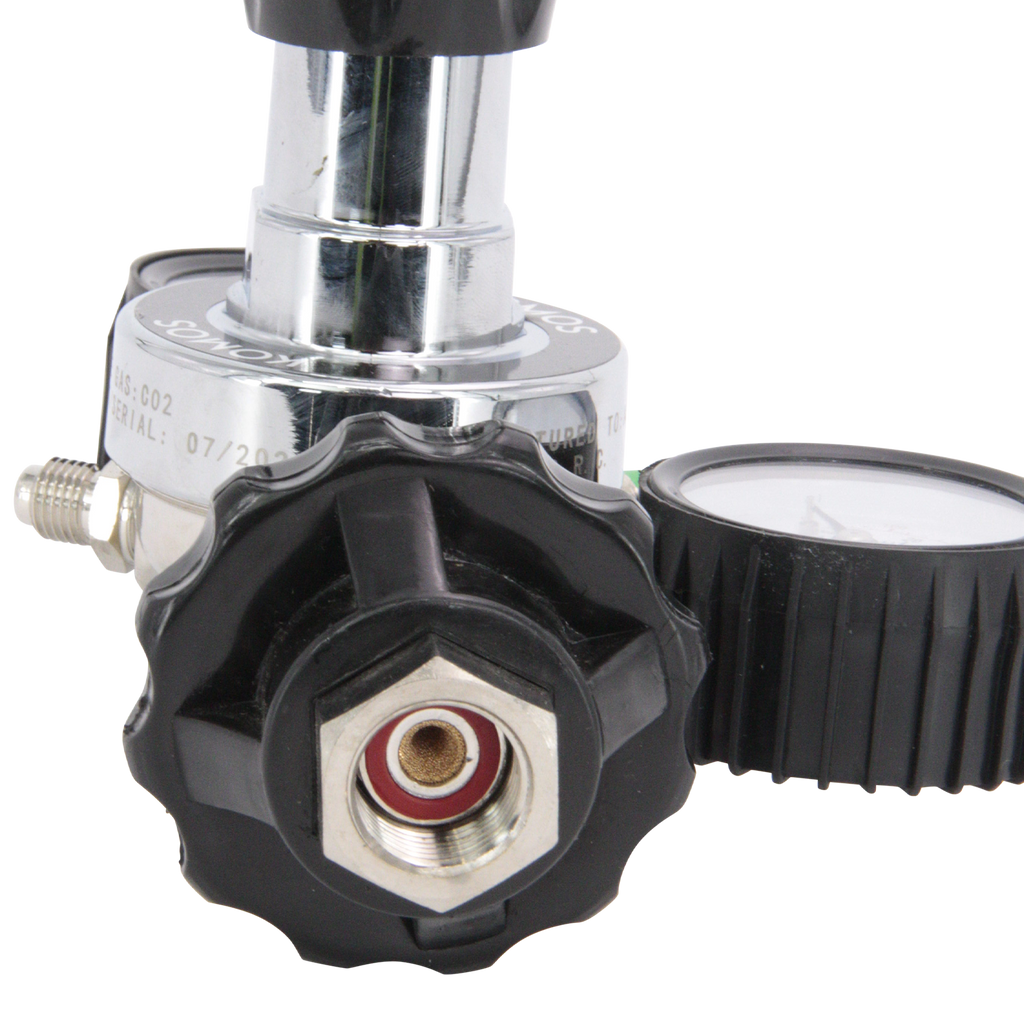

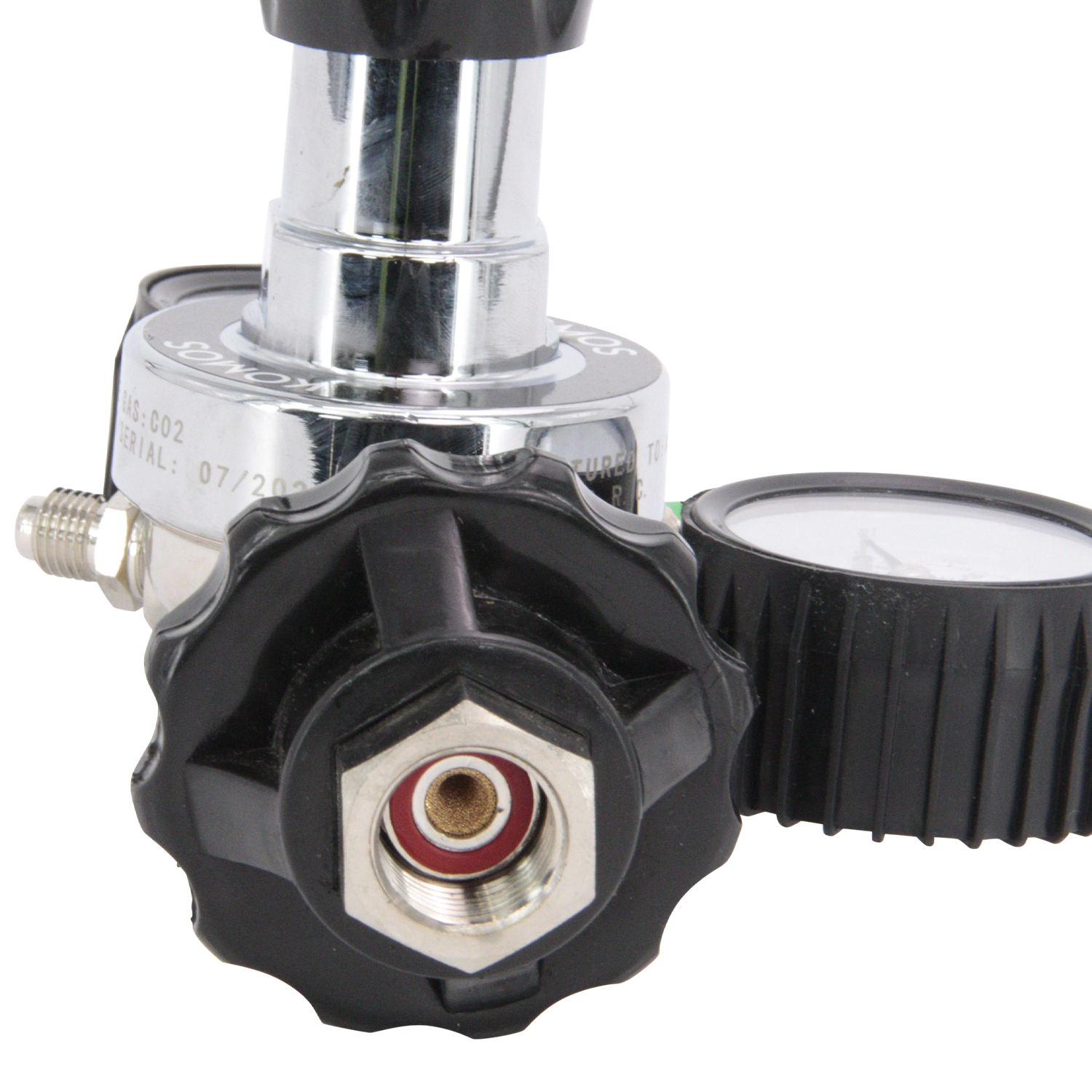

- One-handed Cylinder Tightening: Attach the regulator to your CO2 cylinder effortlessly with one hand using the integrated nut-hand-wheel. No separate spanner or wrench is needed! This is made possible by a new spigot seal design that compresses easily without the risk of damage or leaks.

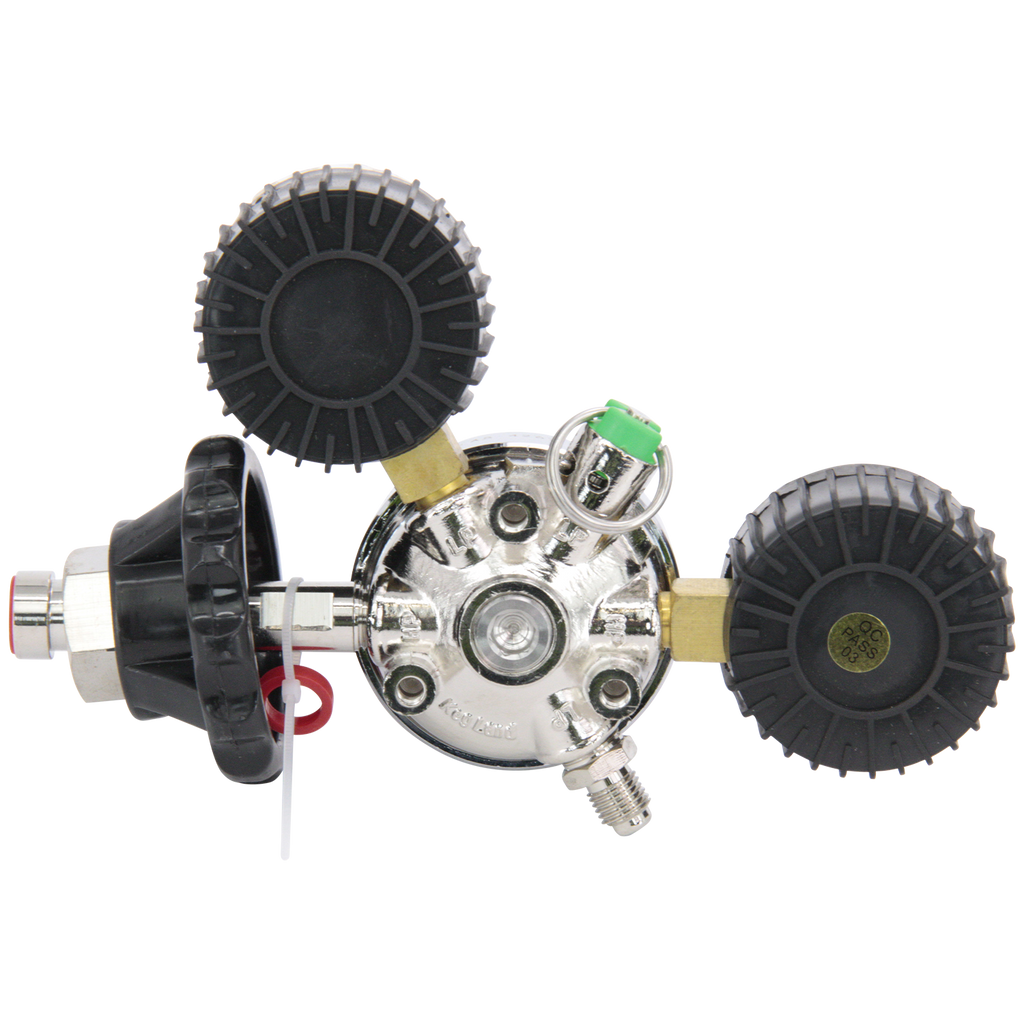

- Simplified Self-Servicing: Maintain your regulator with ease by accessing the internal components from the backplate. Simply use an 8mm hex/Allen key to remove the regulator knob and access the internals for cleaning, eliminating the need for a vise or specialized tools.

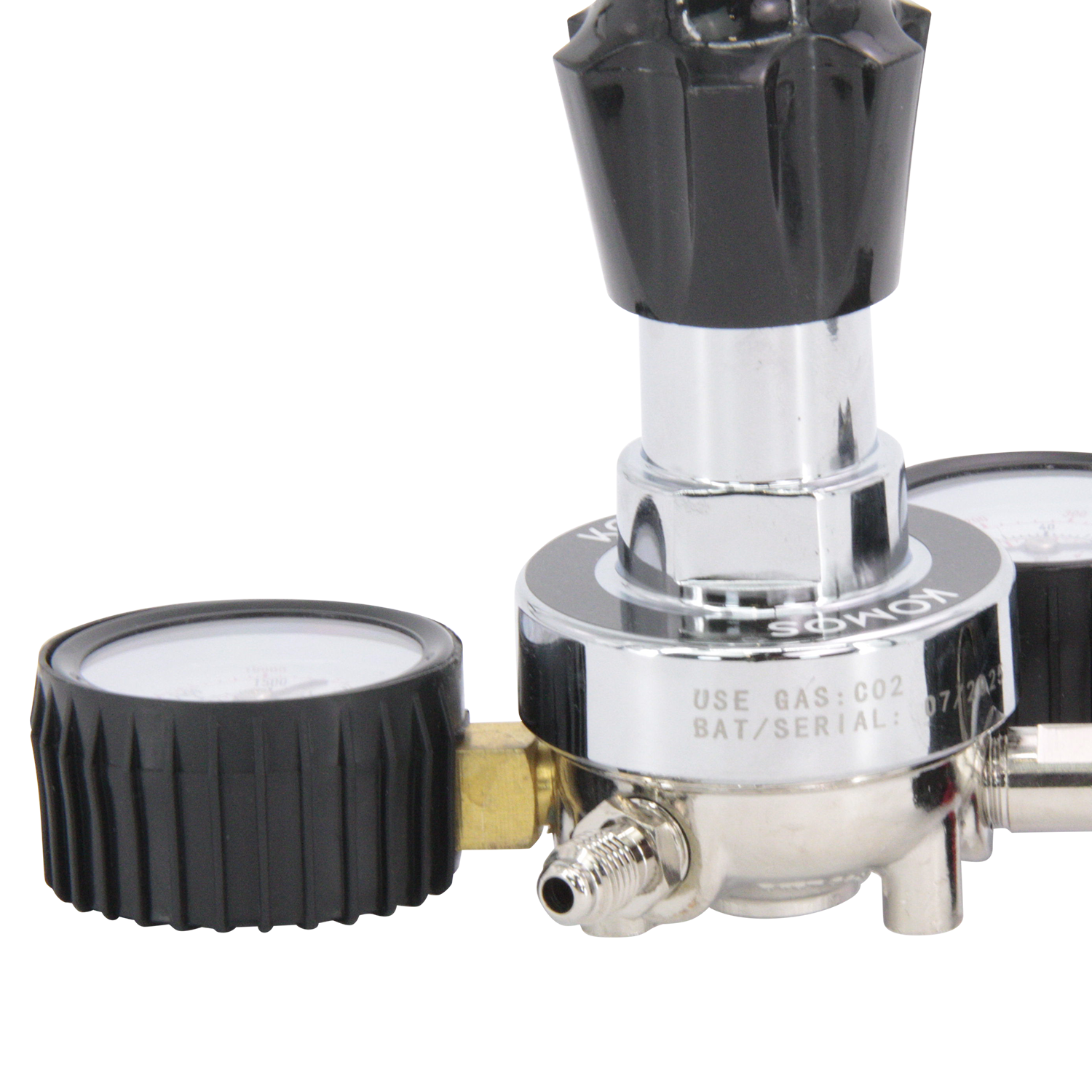

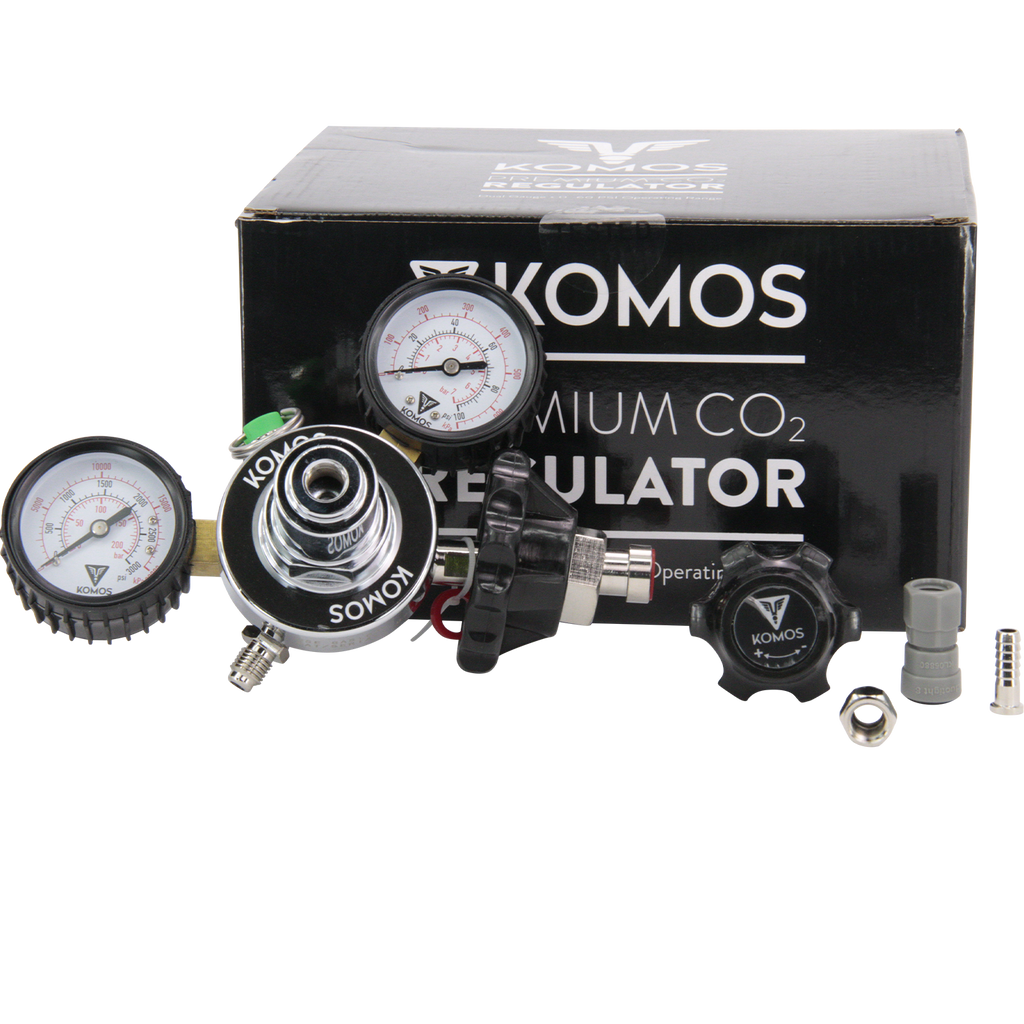

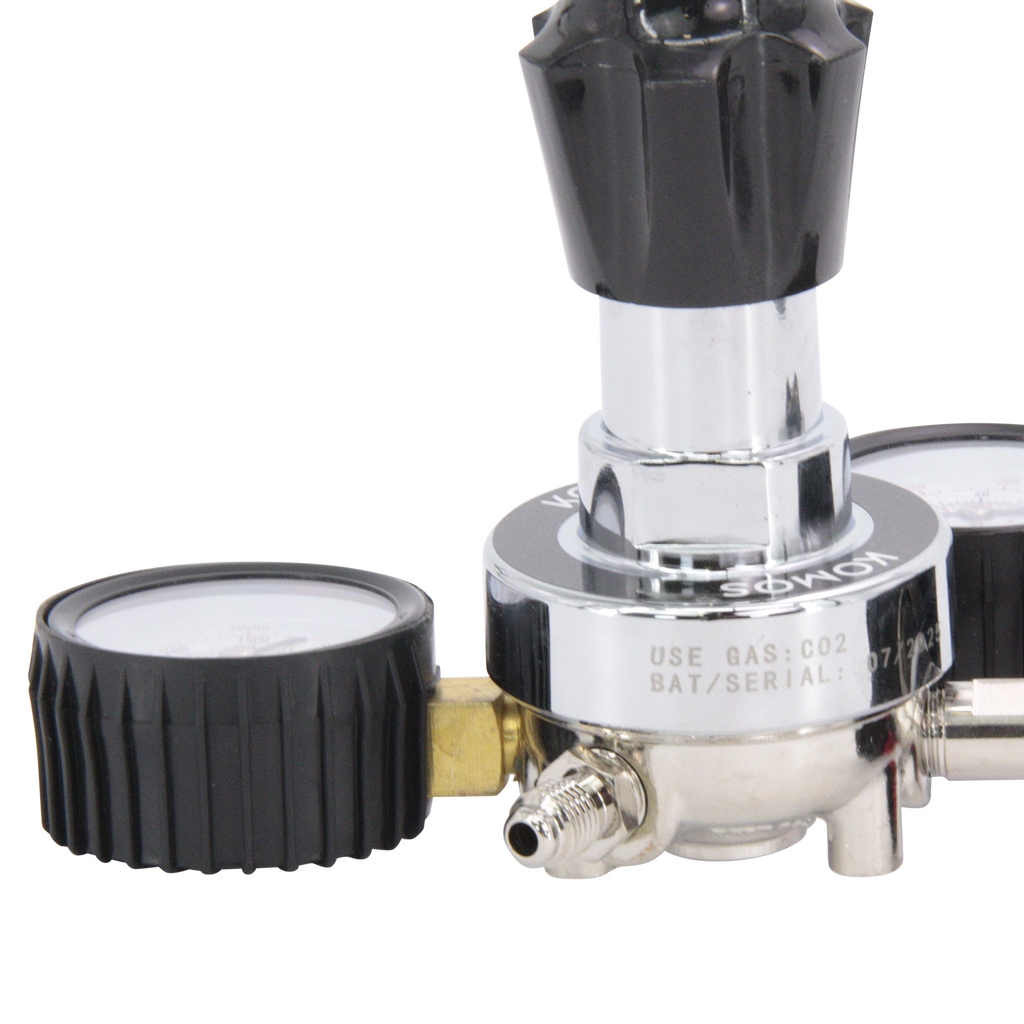

- Flared Output: The regulator features an output with 1/4" male flare connection. Each regulator comes with a 1/4" barb and nut as well as an 8mm Duotight adapter for use with your preferred tubing.

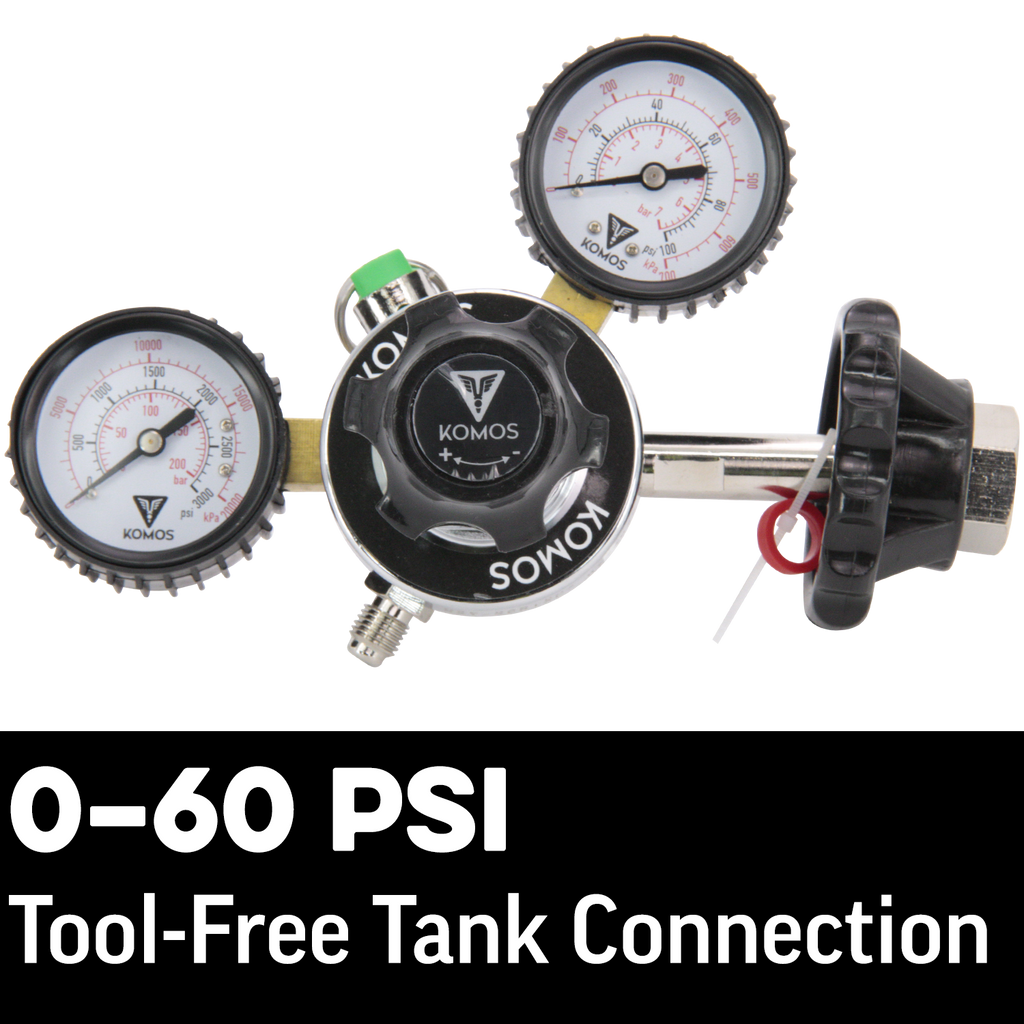

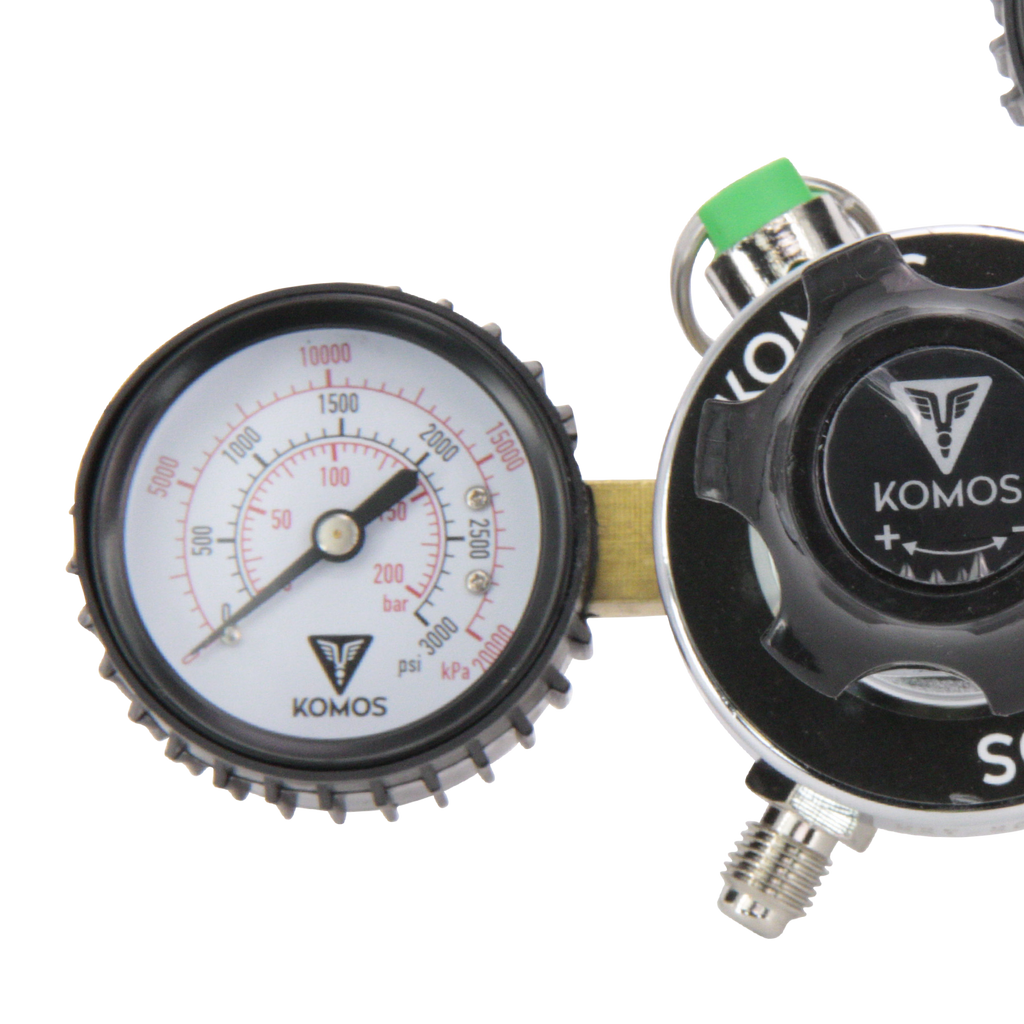

- Triple-Scale Gauge: Monitor your CO2 pressure accurately with the Class 2.5 gauge, featuring PSI, bar, and kPa scales for easy reading (+/- 2.5% accuracy).
- Durable Seat Cap Assembly: The new seat cap is constructed from ultra-high molecular weight polyethylene, providing exceptional resistance to wear and tear. This robust design minimizes the risk of scratching and brass filings, which can lead to pressure creep, even under demanding conditions like forced carbonation.
- Reinforced Steel Gauges: Benefit from enhanced durability with thicker steel gauges built to withstand rigorous use.

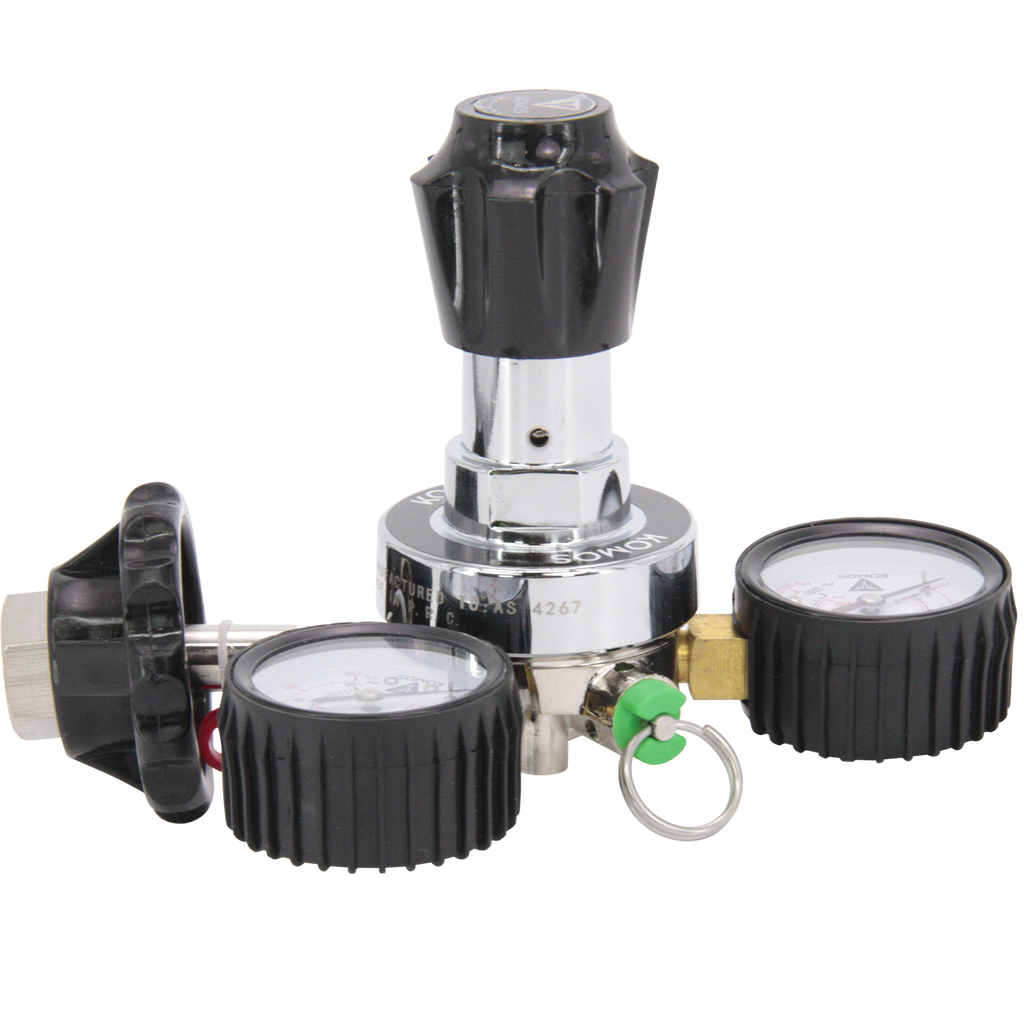

- Color-Coded PRV: This regulator includes a 65 PSI green PRV (pressure relief valve). This can be swapped to the Red (35 PSI) or Gray (100 PSI) PRV if desired.
- Easy Mounting: Integrated M6 mounting holes allow for secure and convenient installation. Note that the nut-wheel needs to be removed for flush mounting.
Specs:
-
0–60 PSI operating range

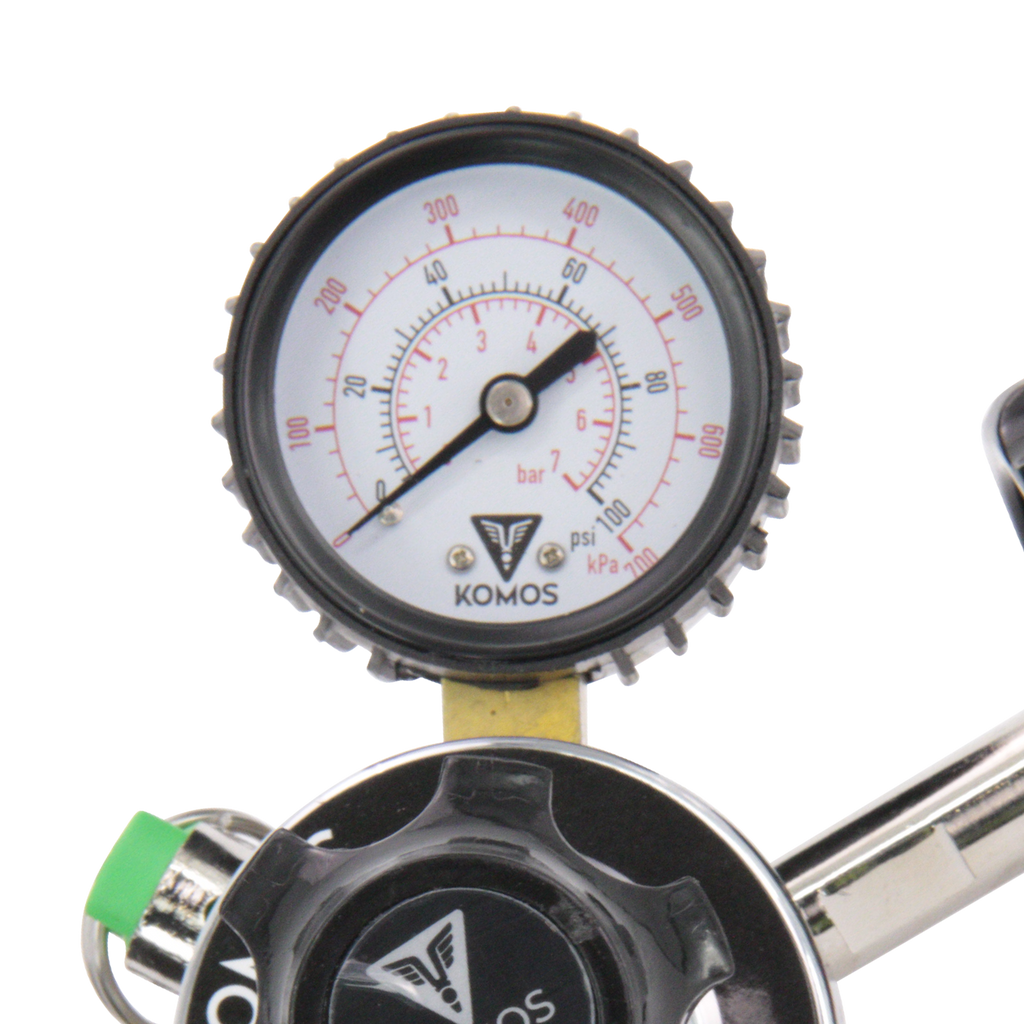

- Low pressure gauge reads from 0–100
- Pull ring PRV rated to blow off at 65 PSI
- 1/4" & 5/16" barb fittings included
- Duotight adapter for EVABarrier tubing included
- Standard US CO2 Threads (CGA320)
- Gauge protectors
- M6 mounting screw holes
- Made in accordance with AS 4267
